System-Level Modelling

System-level modelling is used to evaluate an entire integrated system and ensure it meets all the design requirements, simulating real-world conditions to verify components' functionality, and confirm the system as a whole meets the design intent.

COATL engineering leverages the capabilities of OpenModellica & Simulink to perform multi-body simulations for mechanisms, 6 degrees of freedom and flight trajectories studies, among other applications.

Capabilities

  •  Performance assessment

  • System-level optimization

  • Response analysis

  • Perturbation analysis

  • Propulsion systems

Systems leves 1y2_edited.png

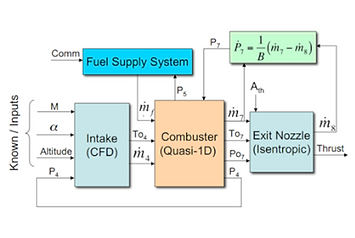

System modelling 1D - 3D chemical kinetics and air intake integration for engine simulation

System Level M.png

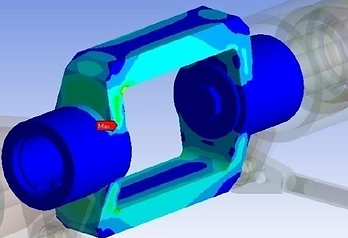

System level stress analysis on a steering assembly
